Host-Bus-Adapter für Server
Um Server durch Geräte zur Datenspeicherung wie Festplatten, aber auch andere interne und externe Geräte zu erweitern, ist eine Hardware-Schnittstelle notwendig, welche die benötigten Anschlüsse bereitstellt. Diese Aufgabe übernimmt der Host-Bus-Adapter. Die Steckkarte, die auf dem Mainboard per PCIe-Anschluss installiert wird, bietet eine unkomplizierte und zuverlässige Möglichkeit, Speicher-Geräte mit dem Server zu verbinden. Den passenden HBA für Ihr System finden Sie hier bei HaehnleinIT!
Mit dem Dell HBA355i können Sie die Anzahl der am Server oder der Workstation angeschlossenen Festplatten erhöhen. Der SATA / SAS HBA wird vom Hersteller Avago für Dell gefertigt, weshalb beide Marken auf der Karte vermerkt sein können. Der Host Bus Adapter bietet eine Schnittstelle mit PCIe x8 4.0. Über 16 interne Anschlüsse in 2 SlimSAS SFF-8654-8i Ports (Dell-spezifische Anschlüsse) können SATA oder SAS Laufwerke angeschlossen werden. Dell bietet spezielle Kabel für diese Anschlüsse an, ansonsten ist der Adapter mit allen bekannten Marken kompatibel. Full und Low Profile Brackets sind im Lieferumfang enthalten. Anschlüsse: PCIe x8 4.0, 2 Port SlimSAS SFF-8654-8i (nur mit Dell-Kabeln verwendbar) zum Anschließen von maximal 16 SATA / SAS Laufwerken Maximale Datenübertragungsrate: 12GBit/s Inklusive Full & Low Profile Slot-Bleche HBA ist mit der neuesten IT Mode Firmware geflasht Alternative Bezeichnungen: HBA355i, 405-AAXW, 7GRF6
Der Tri-Mode eHBA 9600-16e von Broadcom, ehemals LSI, kann dazu genutzt werden, weitere Festplatten an Ihrem Server anzuschließen. Über die PCIe x8 4.0 Schnittstelle wird der Host Bus Adapter mit dem Server-Mainboard verbunden. 4 miniSAS SFF-8674 Ports (abwärts kompatible mit SFF-8644) bieten Anschlüsse für bis zu 16 SATA / SAS Laufwerke. Der Adapter ist mit allen bekannten Marken kompatibel. Im Lieferumfang sind zusätzlich zum HBA sowohl Full als auch Low Profile Bracket enthalten. Anschlüsse: PCIe x8 4.0, 4 Port miniSAS SFF-8674 für maximal 16 SATA / SAS Laufwerke extern Max. Datenübertragungsrate: 24GBit/s Inkl. Full & Low Profile Slot-Bleche Mit der neuesten IT Mode Firmware geflasht Geeignet für FreeNAS, TrueNAS, Unraid, ZFS, Windows, Linux und mehr Alternative Bezeichnungen: 9600-16e, 05-50118-00, 450W-16e, 4Y37A85156
Mit dem Dell HBA465i können Sie die Anzahl der am Server oder der Workstation angeschlossenen Festplatten erhöhen. Der SATA / SAS HBA wird vom Hersteller Avago für Dell gefertigt, weshalb beide Marken auf der Karte vermerkt sein können. Der Host Bus Adapter bietet eine Schnittstelle mit PCIe x16 4.0. Über 16 interne Anschlüsse in 2 SlimSAS SFF-8654-8i Ports (Dell-spezifische Anschlüsse) können SATA oder SAS Laufwerke angeschlossen werden. Dell bietet spezielle Kabel für diese Anschlüsse an, ansonsten ist der Adapter mit allen bekannten Marken kompatibel. Full und Low Profile Brackets sind im Lieferumfang enthalten. Anschlüsse: PCIe x16 4.0, 2 Port SlimSAS SFF-8654-8i (nur mit Dell-Kabeln verwendbar) zum Anschließen von maximal 16 SATA / SAS Laufwerken Maximale Datenübertragungsrate: 24GBit/s Inklusive Full & Low Profile Slot-Bleche HBA ist mit der neuesten IT Mode Firmware geflasht
Der Supermicro AOC-S3808L-L8IT ist ein professioneller SATA / SAS / NVMe TriMode HBA für Server und Workstations, der Ihnen die Möglichkeit bietet, die Anzahl von angeschlossenen Festplatten zu erhöhen. Hersteller der Komponente für die Marke Supermicro ist Avago. Der HBA bietet eine Schnittstelle mit PCIe x8 4.0. Der Adapter verfügt über 8 interne Anschlüsse für SATA oder SAS Laufwerke über 1 SlimSAS SFF-8654 Port und ist universell mit allen bekannten Marken kompatibel. Der verbaute Chipsatz Broadcom SAS3816 ist identisch mit dem Modell Broadcom 9500-8i. Geliefert wird der Adapter inklusive Full und Low Profile Slot-Blech. Der Host-Bus-Adapter dient als Hardwareschnittstelle für Storage Devices. Verbauter Chipsatz: Broadcom SAS3808 Anschlüsse: PCIe x8 4.0, 1 Port SlimSAS SFF-8654 für maximal 8 SATA / SAS Laufwerke Die maximale Datenübertragungsrate beträgt 12GBit/s SAS / 6Gbit/s SATA. Full und Low Profile Brackets zur flexiblen Installation sind enthalten. Der Host-Bus-Adapter ist bereits mit der neuesten IT Mode Firmware geflasht. Alternative Bezeichnungen: AOC-S3808L-L8IT, AOC-S3808L-L8IT-O, 9500-8i, 05-50077-03

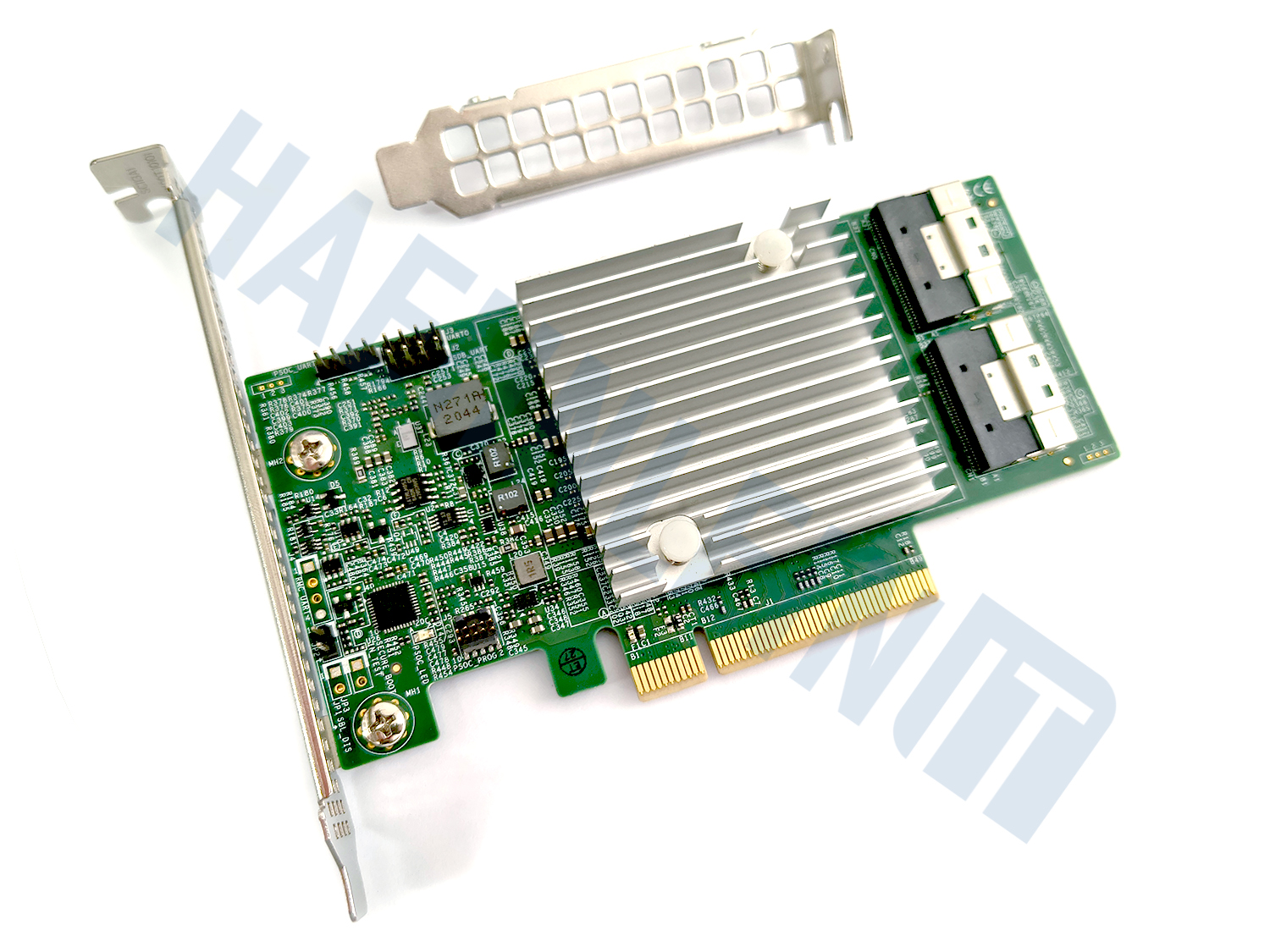

Der Supermicro AOC-S3816L-L16IT ist ein professioneller SATA / SAS / NVMe TriMode HBA für Server und Workstations, der Ihnen die Möglichkeit bietet, die Anzahl von angeschlossenen Festplatten zu erhöhen. Hersteller der Komponente für die Marke Supermicro ist Avago. Der HBA bietet eine Schnittstelle mit PCIe x8 4.0. Der Adapter verfügt über 16 interne Anschlüsse für SATA oder SAS Laufwerke über 2 SlimSAS Ports SFF-8654 und ist universell mit allen bekannten Marken kompatibel. Der verbaute Chipsatz Broadcom SAS3816 ist identisch mit dem Modell Broadcom 9500-16i. Geliefert wird der Adapter inklusive Full und Low Profile Slot-Blech. Der Host-Bus-Adapter dient als Hardwareschnittstelle für Storage Devices. Verbauter Chipsatz: Broadcom SAS3816 Anschlüsse: PCIe x8 4.0, 2 Port SlimSAS SFF-8654 für maximal 16 SATA / SAS Laufwerke Die maximale Datenübertragungsrate beträgt 12GBit/s SAS / 6Gbit/s SATA. Full und Low Profile Brackets zur flexiblen Installation sind enthalten. Der Host-Bus-Adapter ist bereits mit der neuesten IT Mode Firmware geflasht. Alternative Bezeichnungen: AOC-S3816L-L16IT, AOC-S3816L-L16IT-O, 9500-16i, 05-50077-02
Mit dem Dell HBA465e können Sie die Anzahl der am Server oder der Workstation angeschlossenen Festplatten erhöhen. Der SATA / SAS HBA wird vom Hersteller Avago für Dell gefertigt, weshalb beide Marken auf der Karte vermerkt sein können.Der Host Bus Adapter bietet eine Schnittstelle mit PCIe x16 4.0. Über 16 interne Anschlüsse in 4 miniSAS SFF-8674 Ports können SATA oder SAS Laufwerke angeschlossen werden. Der Adapter ist mit allen bekannten Marken kompatibel. Ein Low Profile Slot-Blech ist im Lieferumfang enthaltenAnschlüsse: PCIe x16 4.0, 4x miniSAS SFF-8674 Ports (abwärts kompatibel mit SFF-8644) für maximal 16 SATA / SAS LaufwerkeMax. Datenübertragungsrate: 24GBit/sInkl. Low Profile BracketNeueste IT Mode Firmware Alternative Bezeichnungen: HBA465e, 405-BBDD
What is a host bus adapter?
The host bus adapter, or HBA for short, is a hardware component that forms the interface between server and storage devices such as hard disks. The host bus adapter enables the operating system to store and retrieve data, thereby increasing the performance of the server. It is possible to install the HBA directly on the mainboard, but additional plug-in cards are usually used for servers.
Types of HBAs
HBAs in the server sector are differentiated according to the connections and protocols used:
- SATA / SAS HBA: connects computers, workstations or servers to a network via SAS or SATA ports. As a further development of SCSI, SAS offers a higher bandwidth and therefore higher data transfer rates.
- NVMe HBA: connects servers, preferably with SSDs, using NVMe connections. NVMe offers a higher bandwidth and lower latency times than SAS / SATA and therefore better performance.
- Fibre Channel HBA: connects servers to a Fibre Channel network. The fibre optic connection allows large amounts of data to be transported quickly.
- InfiniBand HBA: connects servers to an InfiniBand network. Thanks to the particularly high data transfer rates, these host bus adapters are suitable for high-performance computing applications, for example in data centres.
Other types, such as SCSI and iSCSI HBAs, are now quite outdated and are no longer commonly found in the server sector. Which type is suitable for your server system depends on which ports your existing devices have.
HBA or RAID controller? Features, advantages and differences
In principle, both host bus adapters and RAID controllers have the role of connecting the server to storage devices. However, there are some differences between the two components. While RAID controllers manage the data and can not only store it, but also mirror it and therefore secure it, HBAs have no other function than to pass the hard drives directly to the operating system.
When using the HBA with IT Mode firmware, the operating system itself, such as TrueNAS or FreeNAS, takes over control with the ZFS file system. One of the advantages of this is that if the HBA fails, any other HBA with the same ports can be used. If a RAID controller is defective, it must be replaced with the same model in order to recognise the existing RAID array and be able to continue processing it. Therefore using a host bus adapter allows you to be more flexible.
Another advantage of HBAs is the ability to read smart values from the hard disks and SSDs, which provide information, for example, when read or write errors occur and if it is foreseeable that the component will soon need to be replaced. These values are passed on by the HBA to the operating system so that the administrator can be informed automatically if failures are to be expected. This ensures reliable monitoring of the devices.
Modern mainboards have the capacity to store and access data in a controlled manner via software RAID, which in many cases makes RAID controllers superfluous. Trends are continuing in the direction of software-defined storage, so it is to be expected that HBAs will gradually replace RAID controllers.
Host bus adapters from well-known brands
Most HBAs for servers and workstations here in our shop are available from the manufacturer Broadcom, which now also includes the LSI brand. However, brands that are more familiar to end users, such as HP, Dell and Fujitsu, also offer professional host bus adapters. You can find HBAs labelled OEM here and elsewhere online. These components may have branding from different brands, but are technically identical. This is why the same host bus adapters may be listed under different part numbers.
Used server components from a specialised retailer
Here in the HaehnleinIT online shop you will find mostly used and refurbished server components. In addition to HBAs, we also stock server NICs, server motherboards and cases, as well as complete server systems. The biggest advantage of used server technology is the significantly lower acquisition cost compared to new goods. Used hardware also makes it possible to supply older systems with spare parts and not be forced to resort to newer and more expensive models.
Do you have any questions about our products or would you like to have a system customised for you? We're happy to give you any information you need. Simply write to us via our contact form!
